SMG1812 SERIES

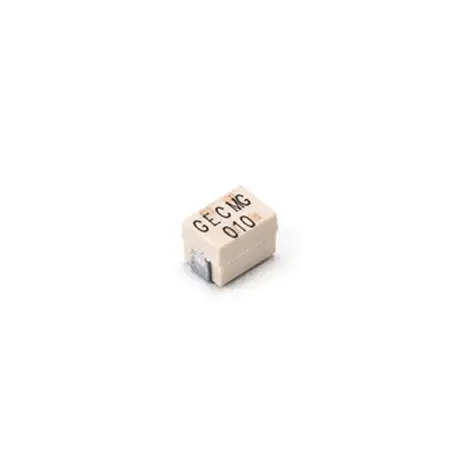

The Gowanda SMG1812 series of non-magnetic molded RF inductors features an inductance range from 0.010 to 0.082 µH, with a minimum Q factor of 35 to 40, self-resonant frequencies (SRF) ranging from 750 to 1000 MHz, and maximum DC resistance (DCR) from 0.1 to 0.25 ohms. These surface-mount inductors, measuring 4.8 mm x 3.4 mm x 3.5 mm, are designed for magnetically sensitive applications such as medical imaging equipment, telecommunications, and other high-frequency electronic systems, and are available in RoHS-compliant versions.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
SMG1812-082MLF	SMT	0.82	0.25	0.7	750	±20%	RoHS	smt	0-82	0-25	0-7	750	%c2%b120	rohs	smg1812
SMG1812-082M	SMT	0.82	0.25	0.7	750	±20%	Pb	smt	0-82	0-25	0-7	750	%c2%b120	pb	smg1812
SMG1812-082KLF	SMT	0.82	0.25	0.7	750	±10%	RoHS	smt	0-82	0-25	0-7	750	%c2%b110	rohs	smg1812
SMG1812-082K	SMT	0.82	0.25	0.7	750	±10%	Pb	smt	0-82	0-25	0-7	750	%c2%b110	pb	smg1812
SMG1812-082JLF	SMT	0.82	0.25	0.7	750	±5%	RoHS	smt	0-82	0-25	0-7	750	%c2%b15	rohs	smg1812
SMG1812-082J	SMT	0.82	0.25	0.7	750	±5%	Pb	smt	0-82	0-25	0-7	750	%c2%b15	pb	smg1812
SMG1812-082GLF	SMT	0.82	0.25	0.7	750	±2%	RoHS	smt	0-82	0-25	0-7	750	%c2%b12	rohs	smg1812
SMG1812-082G	SMT	0.82	0.25	0.7	750	±2%	Pb	smt	0-82	0-25	0-7	750	%c2%b12	pb	smg1812
SMG1812-068MLF	SMT	0.68	0.25	0.77	750	±20%	RoHS	smt	0-68	0-25	0-77	750	%c2%b120	rohs	smg1812
SMG1812-068M	SMT	0.68	0.25	0.77	750	±20%	Pb	smt	0-68	0-25	0-77	750	%c2%b120	pb	smg1812
SMG1812-068KLF	SMT	0.68	0.25	0.77	750	±10%	RoHS	smt	0-68	0-25	0-77	750	%c2%b110	rohs	smg1812
SMG1812-068K	SMT	0.68	0.25	0.77	750	±10%	Pb	smt	0-68	0-25	0-77	750	%c2%b110	pb	smg1812
SMG1812-068JLF	SMT	0.68	0.25	0.77	750	±5%	RoHS	smt	0-68	0-25	0-77	750	%c2%b15	rohs	smg1812
SMG1812-068J	SMT	0.68	0.25	0.77	750	±5%	Pb	smt	0-68	0-25	0-77	750	%c2%b15	pb	smg1812
SMG1812-068GLF	SMT	0.68	0.25	0.77	750	±2%	RoHS	smt	0-68	0-25	0-77	750	%c2%b12	rohs	smg1812
SMG1812-068G	SMT	0.68	0.25	0.77	750	±2%	Pb	smt	0-68	0-25	0-77	750	%c2%b12	pb	smg1812
SMG1812-056MLF	SMT	0.56	0.25	0.77	850	±20%	RoHS	smt	0-56	0-25	0-77	850	%c2%b120	rohs	smg1812
SMG1812-056M	SMT	0.56	0.25	0.77	850	±20%	Pb	smt	0-56	0-25	0-77	850	%c2%b120	pb	smg1812
SMG1812-056KLF	SMT	0.56	0.25	0.77	850	±10%	RoHS	smt	0-56	0-25	0-77	850	%c2%b110	rohs	smg1812
SMG1812-056K	SMT	0.56	0.25	0.77	850	±10%	Pb	smt	0-56	0-25	0-77	850	%c2%b110	pb	smg1812
SMG1812-056JLF	SMT	0.56	0.25	0.77	850	±5%	RoHS	smt	0-56	0-25	0-77	850	%c2%b15	rohs	smg1812
SMG1812-056J	SMT	0.56	0.25	0.77	850	±5%	Pb	smt	0-56	0-25	0-77	850	%c2%b15	pb	smg1812
SMG1812-056GLF	SMT	0.56	0.25	0.77	850	±2%	RoHS	smt	0-56	0-25	0-77	850	%c2%b12	rohs	smg1812
SMG1812-056G	SMT	0.56	0.25	0.77	850	±2%	Pb	smt	0-56	0-25	0-77	850	%c2%b12	pb	smg1812
SMG1812-047MLF	SMT	0.47	0.2	0.87	1000	±20%	RoHS	smt	0-47	0-2	0-87	1000	%c2%b120	rohs	smg1812
SMG1812-047M	SMT	0.47	0.2	0.87	1000	±20%	Pb	smt	0-47	0-2	0-87	1000	%c2%b120	pb	smg1812
SMG1812-047KLF	SMT	0.47	0.2	0.87	1000	±10%	RoHS	smt	0-47	0-2	0-87	1000	%c2%b110	rohs	smg1812
SMG1812-047K	SMT	0.47	0.2	0.87	1000	±10%	Pb	smt	0-47	0-2	0-87	1000	%c2%b110	pb	smg1812
SMG1812-047JLF	SMT	0.47	0.2	0.87	1000	±5%	RoHS	smt	0-47	0-2	0-87	1000	%c2%b15	rohs	smg1812
SMG1812-047J	SMT	0.47	0.2	0.87	1000	±5%	Pb	smt	0-47	0-2	0-87	1000	%c2%b15	pb	smg1812
SMG1812-047GLF	SMT	0.47	0.2	0.87	1000	±2%	RoHS	smt	0-47	0-2	0-87	1000	%c2%b12	rohs	smg1812
SMG1812-047G	SMT	0.47	0.2	0.87	1000	±2%	Pb	smt	0-47	0-2	0-87	1000	%c2%b12	pb	smg1812
SMG1812-039MLF	SMT	0.39	0.2	0.87	1000	±20%	RoHS	smt	0-39	0-2	0-87	1000	%c2%b120	rohs	smg1812
SMG1812-039M	SMT	0.39	0.2	0.87	1000	±20%	Pb	smt	0-39	0-2	0-87	1000	%c2%b120	pb	smg1812
SMG1812-039KLF	SMT	0.39	0.2	0.87	1000	±10%	RoHS	smt	0-39	0-2	0-87	1000	%c2%b110	rohs	smg1812
SMG1812-039K	SMT	0.39	0.2	0.87	1000	±10%	Pb	smt	0-39	0-2	0-87	1000	%c2%b110	pb	smg1812
SMG1812-039JLF	SMT	0.39	0.2	0.87	1000	±5%	RoHS	smt	0-39	0-2	0-87	1000	%c2%b15	rohs	smg1812
SMG1812-039J	SMT	0.39	0.2	0.87	1000	±5%	Pb	smt	0-39	0-2	0-87	1000	%c2%b15	pb	smg1812
SMG1812-039GLF	SMT	0.39	0.2	0.87	1000	±2%	RoHS	smt	0-39	0-2	0-87	1000	%c2%b12	rohs	smg1812
SMG1812-039G	SMT	0.39	0.2	0.87	1000	±2%	Pb	smt	0-39	0-2	0-87	1000	%c2%b12	pb	smg1812
SMG1812-033MLF	SMT	0.33	0.15	1	1000	±20%	RoHS	smt	0-33	0-15	1	1000	%c2%b120	rohs	smg1812
SMG1812-033M	SMT	0.33	0.15	1	1000	±20%	Pb	smt	0-33	0-15	1	1000	%c2%b120	pb	smg1812
SMG1812-033KLF	SMT	0.33	0.15	1	1000	±10%	RoHS	smt	0-33	0-15	1	1000	%c2%b110	rohs	smg1812
SMG1812-033K	SMT	0.33	0.15	1	1000	±10%	Pb	smt	0-33	0-15	1	1000	%c2%b110	pb	smg1812
SMG1812-033JLF	SMT	0.33	0.15	1	1000	±5%	RoHS	smt	0-33	0-15	1	1000	%c2%b15	rohs	smg1812
SMG1812-033J	SMT	0.33	0.15	1	1000	±5%	Pb	smt	0-33	0-15	1	1000	%c2%b15	pb	smg1812
SMG1812-033GLF	SMT	0.33	0.15	1	1000	±2%	RoHS	smt	0-33	0-15	1	1000	%c2%b12	rohs	smg1812
SMG1812-033G	SMT	0.33	0.15	1	1000	±2%	Pb	smt	0-33	0-15	1	1000	%c2%b12	pb	smg1812
SMG1812-027MLF	SMT	0.27	0.15	1	1000	±20%	RoHS	smt	0-27	0-15	1	1000	%c2%b120	rohs	smg1812
SMG1812-027M	SMT	0.27	0.15	1	1000	±20%	Pb	smt	0-27	0-15	1	1000	%c2%b120	pb	smg1812
SMG1812-027KLF	SMT	0.27	0.15	1	1000	±10%	RoHS	smt	0-27	0-15	1	1000	%c2%b110	rohs	smg1812
SMG1812-027K	SMT	0.27	0.15	1	1000	±10%	Pb	smt	0-27	0-15	1	1000	%c2%b110	pb	smg1812
SMG1812-027JLF	SMT	0.27	0.15	1	1000	±5%	RoHS	smt	0-27	0-15	1	1000	%c2%b15	rohs	smg1812
SMG1812-027J	SMT	0.27	0.15	1	1000	±5%	Pb	smt	0-27	0-15	1	1000	%c2%b15	pb	smg1812
SMG1812-027GLF	SMT	0.27	0.15	1	1000	±2%	RoHS	smt	0-27	0-15	1	1000	%c2%b12	rohs	smg1812
SMG1812-027G	SMT	0.27	0.15	1	1000	±2%	Pb	smt	0-27	0-15	1	1000	%c2%b12	pb	smg1812
SMG1812-022MLF	SMT	0.22	0.1	1.23	1000	±20%	RoHS	smt	0-22	0-1	1-23	1000	%c2%b120	rohs	smg1812
SMG1812-022M	SMT	0.22	0.1	1.23	1000	±20%	Pb	smt	0-22	0-1	1-23	1000	%c2%b120	pb	smg1812
SMG1812-022KLF	SMT	0.22	0.1	1.23	1000	±10%	RoHS	smt	0-22	0-1	1-23	1000	%c2%b110	rohs	smg1812
SMG1812-022K	SMT	0.22	0.1	1.23	1000	±10%	Pb	smt	0-22	0-1	1-23	1000	%c2%b110	pb	smg1812
SMG1812-022JLF	SMT	0.22	0.1	1.23	1000	±5%	RoHS	smt	0-22	0-1	1-23	1000	%c2%b15	rohs	smg1812
SMG1812-022J	SMT	0.22	0.1	1.23	1000	±5%	Pb	smt	0-22	0-1	1-23	1000	%c2%b15	pb	smg1812
SMG1812-022GLF	SMT	0.22	0.1	1.23	1000	±2%	RoHS	smt	0-22	0-1	1-23	1000	%c2%b12	rohs	smg1812
SMG1812-022G	SMT	0.22	0.1	1.23	1000	±2%	Pb	smt	0-22	0-1	1-23	1000	%c2%b12	pb	smg1812
SMG1812-018MLF	SMT	0.18	0.1	1.23	1000	±20%	RoHS	smt	0-18	0-1	1-23	1000	%c2%b120	rohs	smg1812
SMG1812-018M	SMT	0.18	0.1	1.23	1000	±20%	Pb	smt	0-18	0-1	1-23	1000	%c2%b120	pb	smg1812
SMG1812-018KLF	SMT	0.18	0.1	1.23	1000	±10%	RoHS	smt	0-18	0-1	1-23	1000	%c2%b110	rohs	smg1812
SMG1812-018K	SMT	0.18	0.1	1.23	1000	±10%	Pb	smt	0-18	0-1	1-23	1000	%c2%b110	pb	smg1812
SMG1812-018JLF	SMT	0.18	0.1	1.23	1000	±5%	RoHS	smt	0-18	0-1	1-23	1000	%c2%b15	rohs	smg1812
SMG1812-018J	SMT	0.18	0.1	1.23	1000	±5%	Pb	smt	0-18	0-1	1-23	1000	%c2%b15	pb	smg1812
SMG1812-018GLF	SMT	0.18	0.1	1.23	1000	±2%	RoHS	smt	0-18	0-1	1-23	1000	%c2%b12	rohs	smg1812
SMG1812-018G	SMT	0.18	0.1	1.23	1000	±2%	Pb	smt	0-18	0-1	1-23	1000	%c2%b12	pb	smg1812
SMG1812-015MLF	SMT	0.15	0.1	1.23	1000	±20%	RoHS	smt	0-15	0-1	1-23	1000	%c2%b120	rohs	smg1812
SMG1812-015M	SMT	0.15	0.1	1.23	1000	±20%	Pb	smt	0-15	0-1	1-23	1000	%c2%b120	pb	smg1812
SMG1812-015KLF	SMT	0.15	0.1	1.23	1000	±10%	RoHS	smt	0-15	0-1	1-23	1000	%c2%b110	rohs	smg1812
SMG1812-015K	SMT	0.15	0.1	1.23	1000	±10%	Pb	smt	0-15	0-1	1-23	1000	%c2%b110	pb	smg1812
SMG1812-015JLF	SMT	0.15	0.1	1.23	1000	±5%	RoHS	smt	0-15	0-1	1-23	1000	%c2%b15	rohs	smg1812
SMG1812-015J	SMT	0.15	0.1	1.23	1000	±5%	Pb	smt	0-15	0-1	1-23	1000	%c2%b15	pb	smg1812
SMG1812-015GLF	SMT	0.15	0.1	1.23	1000	±2%	RoHS	smt	0-15	0-1	1-23	1000	%c2%b12	rohs	smg1812
SMG1812-015G	SMT	0.15	0.1	1.23	1000	±2%	Pb	smt	0-15	0-1	1-23	1000	%c2%b12	pb	smg1812
SMG1812-012MLF	SMT	0.12	0.1	1.23	1000	±20%	RoHS	smt	0-12	0-1	1-23	1000	%c2%b120	rohs	smg1812
SMG1812-012M	SMT	0.12	0.1	1.23	1000	±20%	Pb	smt	0-12	0-1	1-23	1000	%c2%b120	pb	smg1812
SMG1812-012KLF	SMT	0.12	0.1	1.23	1000	±10%	RoHS	smt	0-12	0-1	1-23	1000	%c2%b110	rohs	smg1812
SMG1812-012K	SMT	0.12	0.1	1.23	1000	±10%	Pb	smt	0-12	0-1	1-23	1000	%c2%b110	pb	smg1812
SMG1812-012JLF	SMT	0.12	0.1	1.23	1000	±5%	RoHS	smt	0-12	0-1	1-23	1000	%c2%b15	rohs	smg1812
SMG1812-012J	SMT	0.12	0.1	1.23	1000	±5%	Pb	smt	0-12	0-1	1-23	1000	%c2%b15	pb	smg1812
SMG1812-012GLF	SMT	0.12	0.1	1.23	1000	±2%	RoHS	smt	0-12	0-1	1-23	1000	%c2%b12	rohs	smg1812
SMG1812-012G	SMT	0.12	0.1	1.23	1000	±2%	Pb	smt	0-12	0-1	1-23	1000	%c2%b12	pb	smg1812
SMG1812-010MLF	SMT	0.1	0.1	1.23	1000	±20%	RoHS	smt	0-1	0-1	1-23	1000	%c2%b120	rohs	smg1812
SMG1812-010M	SMT	0.1	0.1	1.23	1000	±20%	Pb	smt	0-1	0-1	1-23	1000	%c2%b120	pb	smg1812
SMG1812-010KLF	SMT	0.1	0.1	1.23	1000	±10%	RoHS	smt	0-1	0-1	1-23	1000	%c2%b110	rohs	smg1812
SMG1812-010K	SMT	0.1	0.1	1.23	1000	±10%	Pb	smt	0-1	0-1	1-23	1000	%c2%b110	pb	smg1812
SMG1812-010JLF	SMT	0.1	0.1	1.23	1000	±5%	RoHS	smt	0-1	0-1	1-23	1000	%c2%b15	rohs	smg1812
SMG1812-010GLF	SMT	0.1	0.1	1.23	1000	±2%	RoHS	smt	0-1	0-1	1-23	1000	%c2%b12	rohs	smg1812
SMG1812-010J	SMT	0.1	0.1	1.23	1000	±5%	Pb	smt	0-1	0-1	1-23	1000	%c2%b15	pb	smg1812

Notes

Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
Relative Permeability: ≤1.00003
MSL Rating: 1
Epoxy-encapsulated for environmental protection and superior strength to withstand all types of reflow soldering
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Sn63Pb37 (Tin/Lead) for Pb components

Sn/Cu (Tin/Copper) for RoHS components

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C

SMG1812 SERIES

PARAMETRIC SEARCH

Notes
